K742

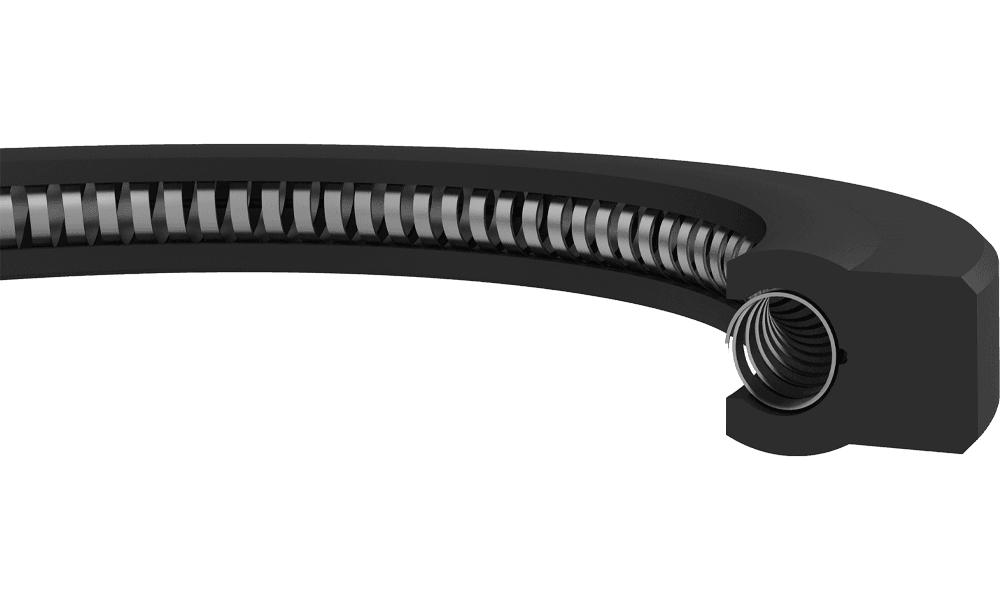

K742 is a static seal produced from PTFE ring and a spring energizer. Providing resistance high pressures, K741 has a wide media compatibility. Advantages • High contact pressure and preloading • High sealing performance at all fluid types incluiding air and gas • Wide tempereture range • Long service life Area of Application • Compressors • Spherical Valves • Chemical Industry • Oil and gas applications • Vacuum applications • Swivel Joints • Gas chromatography

42 parts in catalog

Technical table

Live column filters for code, category, ID, OD and H — same workflow as the store.

42 parts

Code (SKU)	Category	ID (d)	OD (D)	H (L)	Action
K742-010	K742	5.2	10	1.45	View
K742-012	K742	7.2	12	1.45	View
K742-014	K742	6.8	14	2.25	View
K742-015	K742	7.8	15	2.25	View
K742-016	K742	8.8	16	2.25	View
K742-018	K742	10.8	18	2.25	View
K742-020	K742	12.8	20	2.25	View
K742-022	K742	14.8	22	2.25	View
K742-025	K742	15.4	25	3.1	View
K742-028	K742	18.4	28	3.1	View
K742-030	K742	20.4	30	3.1	View
K742-032	K742	22.4	32	3.1	View
K742-035	K742	25.4	35	3.1	View
K742-036	K742	26.4	36	3.1	View
K742-040	K742	30.4	40	3.1	View
K742-042	K742	32.4	42	3.1	View
K742-045	K742	35.4	45	3.1	View
K742-048	K742	33.8	48	4.7	View
K742-050	K742	35.8	50	4.7	View
K742-052	K742	37.8	52	4.7	View
K742-055	K742	40.8	55	4.7	View
K742-056	K742	41.8	56	4.7	View
K742-060	K742	45.8	60	4.7	View
K742-063	K742	48.8	63	4.7	View
K742-065	K742	50.8	65	4.7	View
K742-070	K742	55.8	70	4.7	View
K742-075	K742	60.8	75	4.7	View
K742-080	K742	65.8	80	4.7	View
K742-085	K742	70.8	85	4.7	View
K742-090	K742	75.8	90	4.7	View
K742-095	K742	80.8	95	4.7	View
K742-100	K742	85.8	100	4.7	View
K742-105	K742	90.8	105	4.7	View
K742-110	K742	95.8	110	4.7	View
K742-115	K742	100.8	115	4.7	View
K742-120	K742	105.8	120	4.7	View
K742-125	K742	106	125	6.1	View
K742-130	K742	111	130	6.1	View
K742-135	K742	116	135	6.1	View
K742-140	K742	121	140	6.1	View
K742-145	K742	126	145	6.1	View
K742-150	K742	131	150	6.1	View
